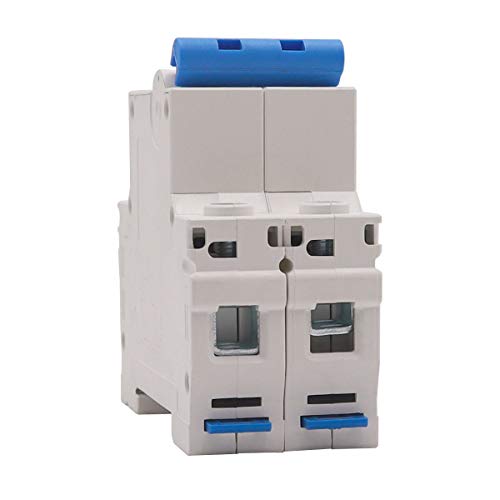

smseace Miniature Circuit Breaker Low Voltage AC 63A 400V,2 Poles AC Disconnect Switch C63 DIN Rail Mount Used to Protect Circuit Equipment

Product: Miniature circuit breaker,DZ47-63 miniature circuit breaker, utilized in 220V branch circuit, is used to give protection to electrical circuit equipment in houses and buildings.

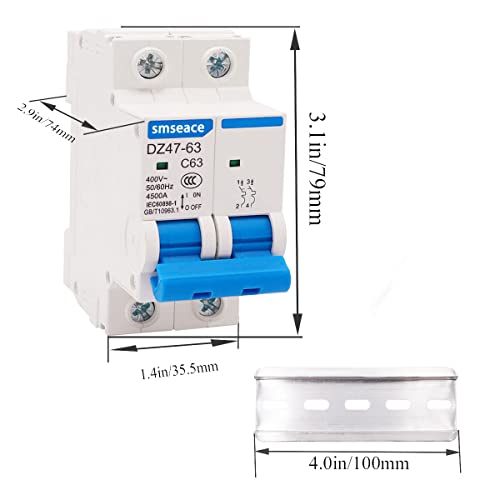

Model: DZ47-63; Collection of levels: bipolar;For AC 50 Hz or 60 Hz； rated current: 63A; rated voltage: 400V.Size: 3.1″x 1.4″x 2.9″/ 79 x35.5x 74mm (L*W*H)
The double-pole circuit breaker is hooked up to the are living wire and the neutral wire, and both the neutral wire and the are living wire have a protective effect and are double disconnected.

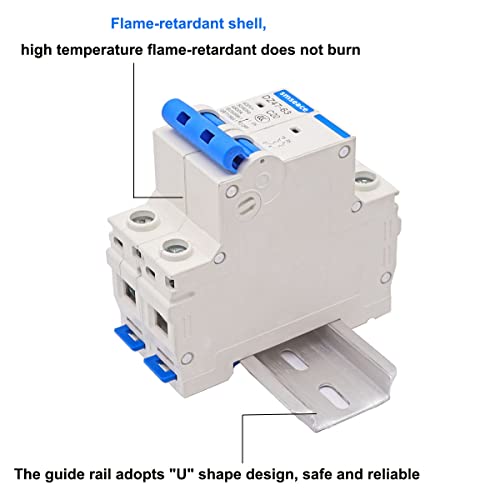

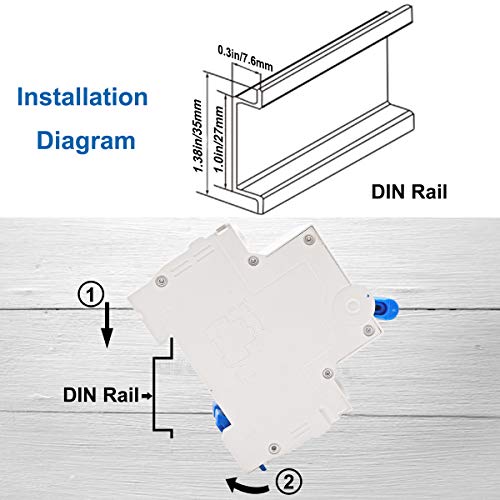

Subject material: PC plastic.Beautiful and exquisite appearance, high breaking capacity, quick disconnection, guide rail installation, long service life, high performance and light-weight weight.
Serve as: used for line overload, short circuit protection and infrequent conversion of lines.Regularly the circuit breaker is installed vertically, and the inclination of the vertical plane does no longer exceed ±5°
